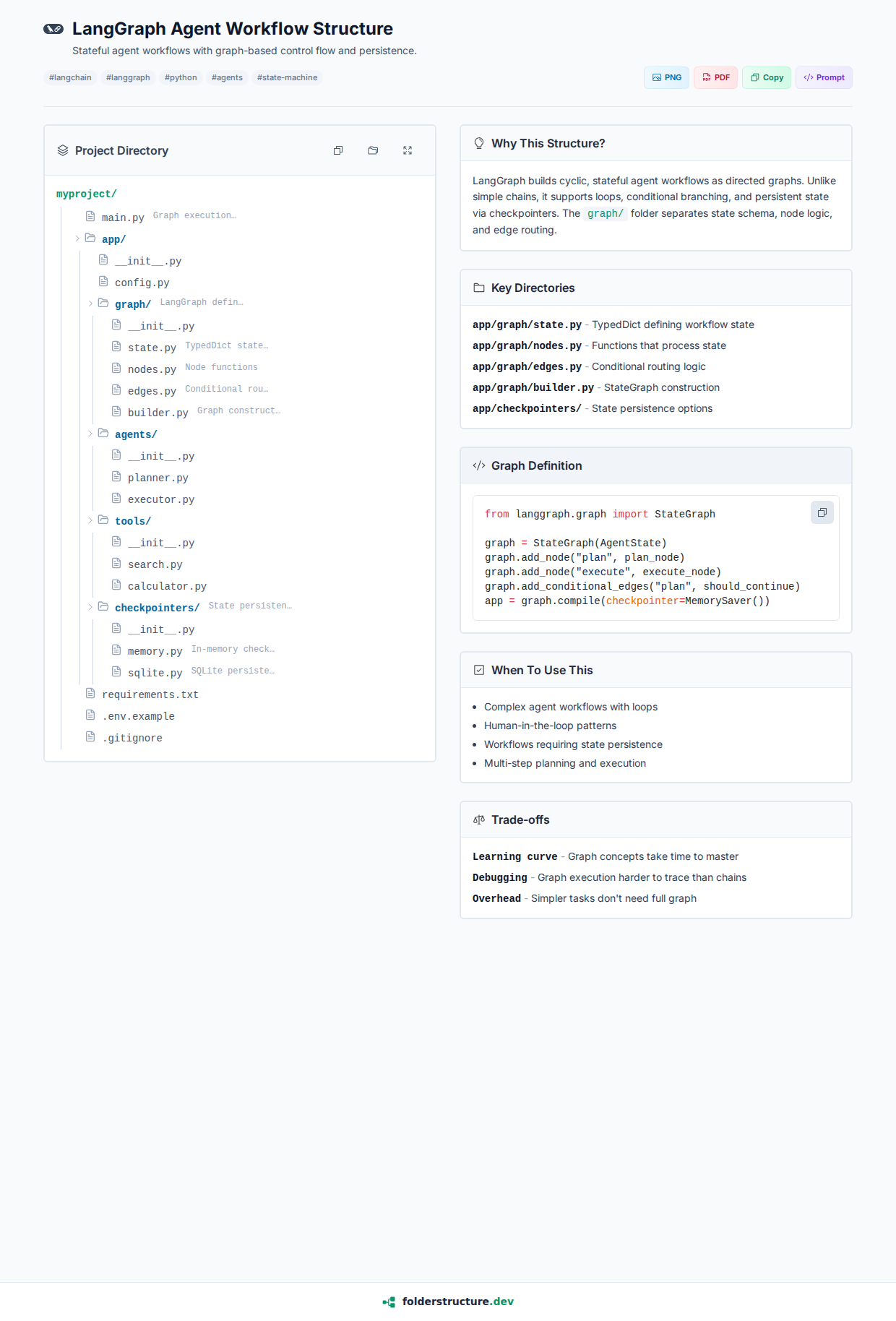

LangGraph Agent Workflow Structure
Stateful agent workflows with graph-based control flow and persistence.
Project Directory
myproject/
main.py
Graph execution entry
app/
__init__.py
config.py
graph/
LangGraph definitions
__init__.py
state.py
TypedDict state schema
nodes.py
Node functions
edges.py
Conditional routing
builder.py
Graph construction
agents/
__init__.py
planner.py
executor.py
tools/
__init__.py
search.py
calculator.py
checkpointers/
State persistence
__init__.py
memory.py
In-memory checkpointer
sqlite.py
SQLite persistence
requirements.txt
.env.example
.gitignore
Why This Structure?
LangGraph builds cyclic, stateful agent workflows as directed graphs. Unlike simple chains, it supports loops, conditional branching, and persistent state via checkpointers. The graph/ folder separates state schema, node logic, and edge routing.
Key Directories
- app/graph/state.py-TypedDict defining workflow state
- app/graph/nodes.py-Functions that process state
- app/graph/edges.py-Conditional routing logic
- app/graph/builder.py-StateGraph construction
- app/checkpointers/-State persistence options
Graph Definition
from langgraph.graph import StateGraph
graph = StateGraph(AgentState)
graph.add_node("plan", plan_node)
graph.add_node("execute", execute_node)
graph.add_conditional_edges("plan", should_continue)
app = graph.compile(checkpointer=MemorySaver())
When To Use This
- Complex agent workflows with loops
- Human-in-the-loop patterns
- Workflows requiring state persistence
- Multi-step planning and execution
Trade-offs
- Learning curve-Graph concepts take time to master
- Debugging-Graph execution harder to trace than chains
- Overhead-Simpler tasks don't need full graph
