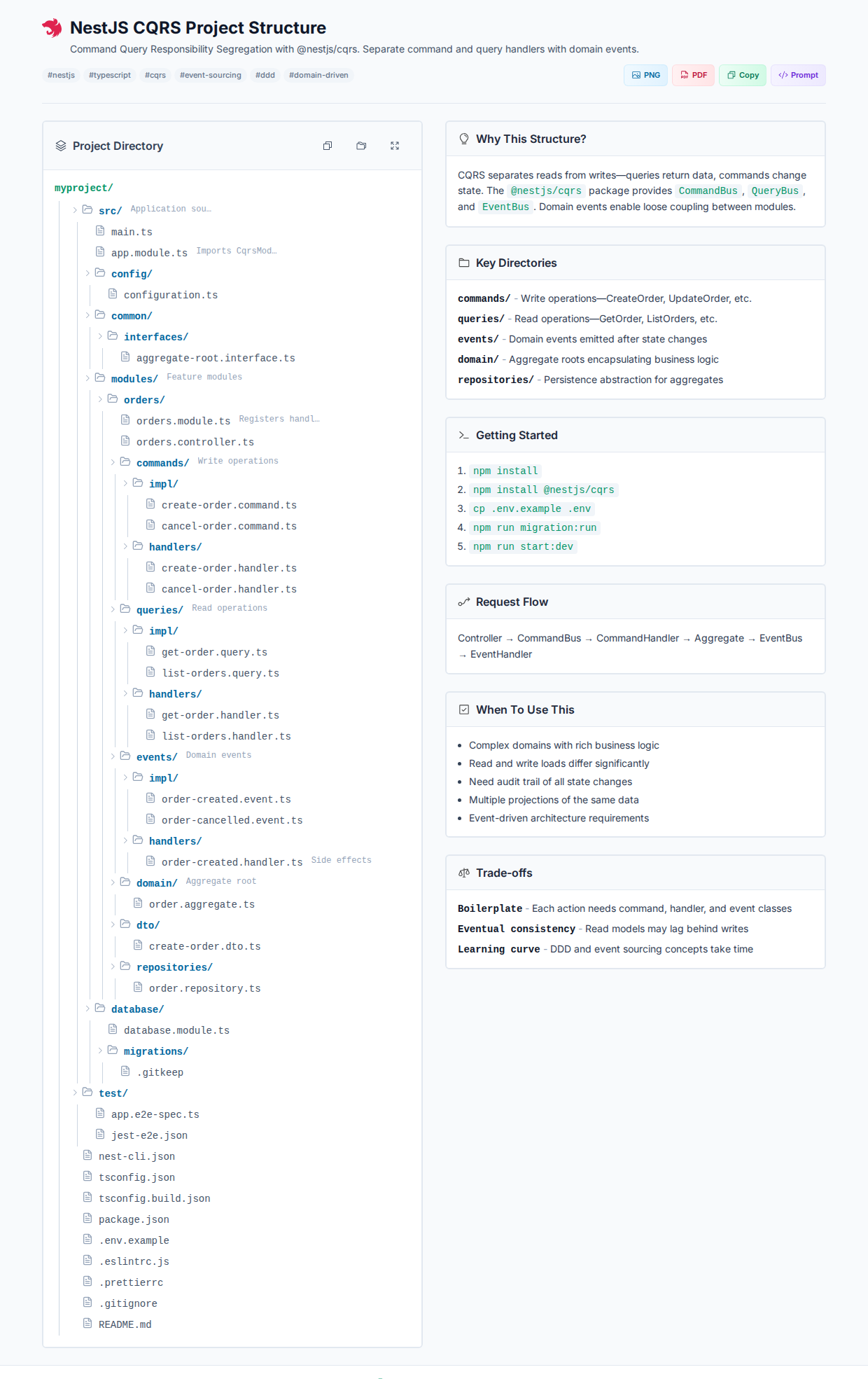

NestJS CQRS Project Structure

Command Query Responsibility Segregation with @nestjs/cqrs. Separate command and query handlers with domain events.

#nestjs #typescript #cqrs #event-sourcing #ddd #domain-driven
PNGPDF

Project Directory

myproject/
src/
Application source
main.ts
app.module.ts
Imports CqrsModule
config/
configuration.ts
common/
interfaces/
aggregate-root.interface.ts
modules/
Feature modules
orders/
orders.module.ts
Registers handlers
orders.controller.ts
commands/
Write operations
impl/
create-order.command.ts
cancel-order.command.ts
handlers/
create-order.handler.ts
cancel-order.handler.ts
queries/
Read operations
impl/
get-order.query.ts
list-orders.query.ts
handlers/
get-order.handler.ts
list-orders.handler.ts
events/
Domain events
impl/
order-created.event.ts
order-cancelled.event.ts
handlers/
order-created.handler.ts
Side effects
domain/
Aggregate root
order.aggregate.ts
dto/
create-order.dto.ts
repositories/
order.repository.ts
database/
database.module.ts
migrations/
.gitkeep
test/
app.e2e-spec.ts
jest-e2e.json
nest-cli.json
tsconfig.json
tsconfig.build.json
package.json
.env.example
.eslintrc.js
.prettierrc
.gitignore
README.md

Why This Structure?

CQRS separates reads from writes—queries return data, commands change state. The @nestjs/cqrs package provides CommandBus, QueryBus, and EventBus. Domain events enable loose coupling between modules.

Key Directories

  • commands/-Write operations—CreateOrder, UpdateOrder, etc.
  • queries/-Read operations—GetOrder, ListOrders, etc.
  • events/-Domain events emitted after state changes
  • domain/-Aggregate roots encapsulating business logic
  • repositories/-Persistence abstraction for aggregates

Getting Started

  1. npm install
  2. npm install @nestjs/cqrs
  3. cp .env.example .env
  4. npm run migration:run
  5. npm run start:dev

Request Flow

Controller → CommandBus → CommandHandler → Aggregate → EventBus → EventHandler

When To Use This

  • Complex domains with rich business logic
  • Read and write loads differ significantly
  • Need audit trail of all state changes
  • Multiple projections of the same data
  • Event-driven architecture requirements

Trade-offs

  • Boilerplate-Each action needs command, handler, and event classes
  • Eventual consistency-Read models may lag behind writes
  • Learning curve-DDD and event sourcing concepts take time
