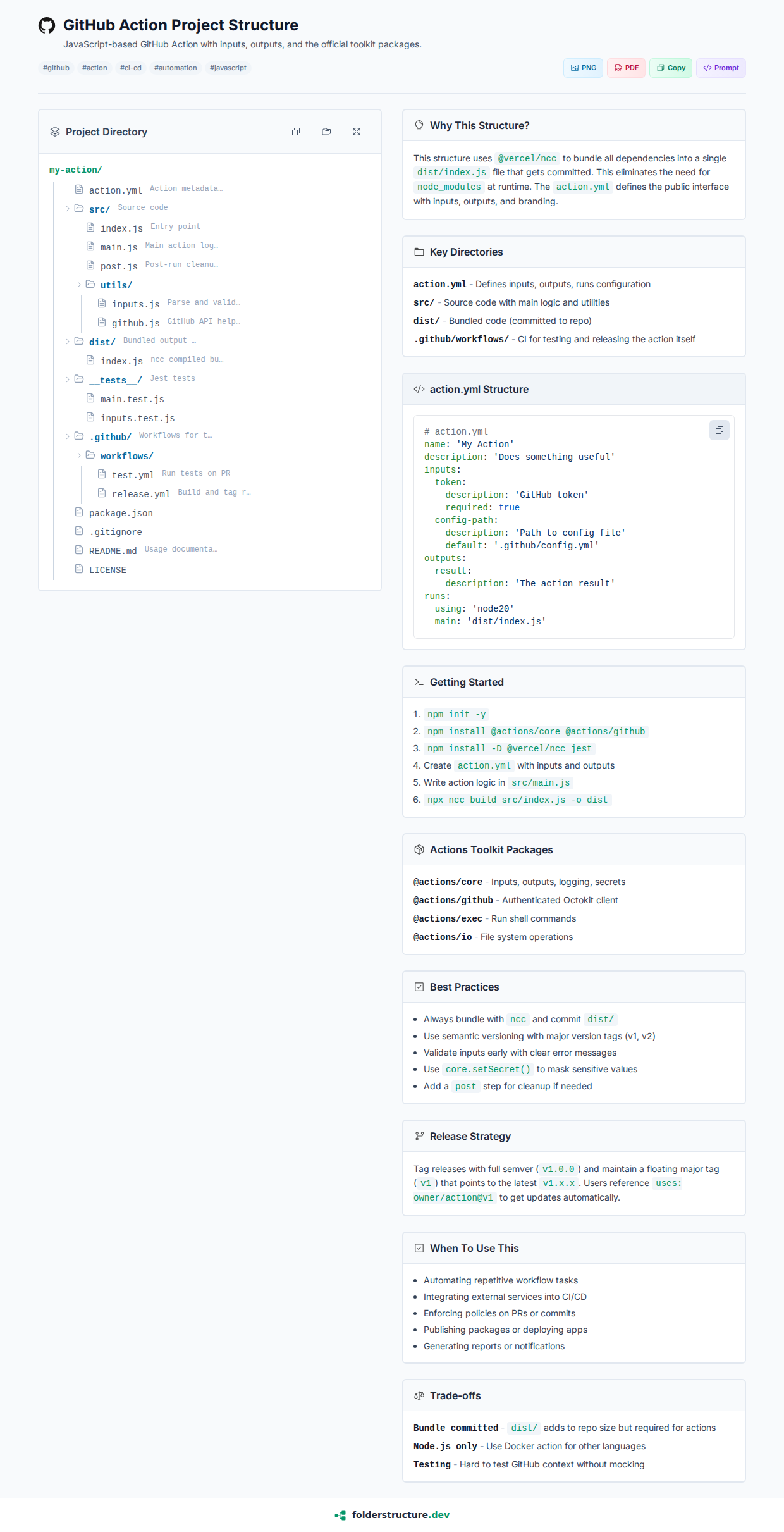

GitHub Action Project Structure

JavaScript-based GitHub Action with inputs, outputs, and the official toolkit packages.

#github #action #ci-cd #automation #javascript

PNG PDF

Project Directory

my-action/

action.yml

Action metadata and interface

src/

Source code

index.js

Entry point

main.js

Main action logic

post.js

Post-run cleanup (optional)

utils/

inputs.js

Parse and validate inputs

github.js

GitHub API helpers

dist/

Bundled output (committed)

index.js

ncc compiled bundle

__tests__/

Jest tests

main.test.js

inputs.test.js

.github/

Workflows for this repo

workflows/

test.yml

Run tests on PR

release.yml

Build and tag releases

package.json

.gitignore

README.md

Usage documentation

LICENSE

Why This Structure?

This structure uses @vercel/ncc to bundle all dependencies into a single dist/index.js file that gets committed. This eliminates the need for node_modules at runtime. The action.yml defines the public interface with inputs, outputs, and branding.

Key Directories

action.yml-Defines inputs, outputs, runs configuration
src/-Source code with main logic and utilities
dist/-Bundled code (committed to repo)
.github/workflows/-CI for testing and releasing the action itself

action.yml Structure

# action.yml
name: 'My Action'
description: 'Does something useful'
inputs:
  token:
    description: 'GitHub token'
    required: true
  config-path:
    description: 'Path to config file'
    default: '.github/config.yml'
outputs:
  result:
    description: 'The action result'
runs:
  using: 'node20'
  main: 'dist/index.js'

Getting Started

npm init -y
npm install @actions/core @actions/github
npm install -D @vercel/ncc jest
Create action.yml with inputs and outputs
Write action logic in src/main.js
npx ncc build src/index.js -o dist

Actions Toolkit Packages

@actions/core-Inputs, outputs, logging, secrets
@actions/github-Authenticated Octokit client
@actions/exec-Run shell commands
@actions/io-File system operations

Best Practices

Always bundle with ncc and commit dist/
Use semantic versioning with major version tags (v1, v2)
Validate inputs early with clear error messages
Use core.setSecret() to mask sensitive values
Add a post step for cleanup if needed

Release Strategy

Tag releases with full semver (v1.0.0) and maintain a floating major tag (v1) that points to the latest v1.x.x. Users reference uses: owner/action@v1 to get updates automatically.

When To Use This

Automating repetitive workflow tasks
Integrating external services into CI/CD
Enforcing policies on PRs or commits
Publishing packages or deploying apps
Generating reports or notifications

Trade-offs

Bundle committed-dist/ adds to repo size but required for actions
Node.js only-Use Docker action for other languages
Testing-Hard to test GitHub context without mocking
