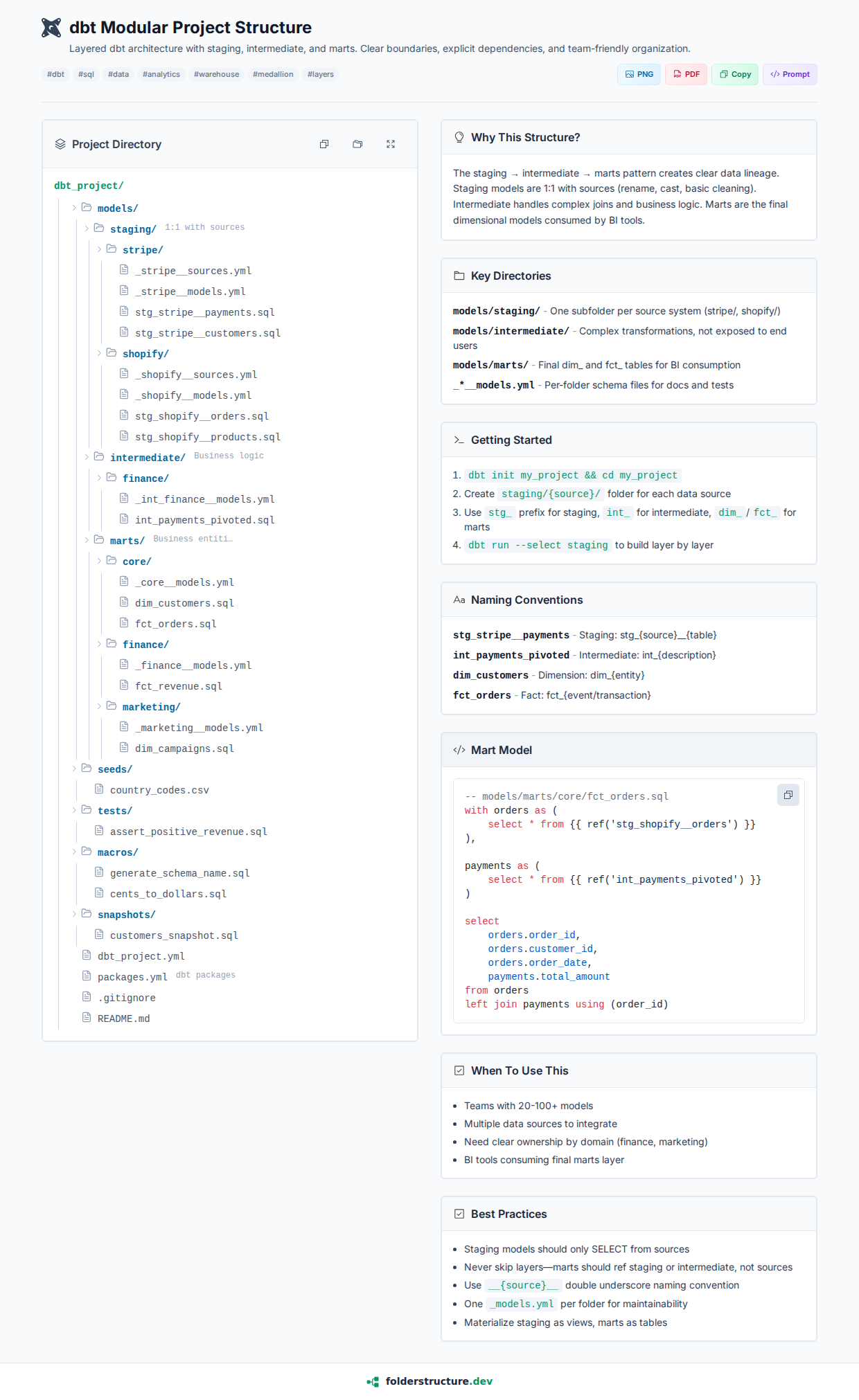

dbt Modular Project Structure

Layered dbt architecture with staging, intermediate, and marts. Clear boundaries, explicit dependencies, and team-friendly organization.

#dbt #sql #data #analytics #warehouse #medallion #layers

PNG PDF

Project Directory

dbt_project/

models/

staging/

1:1 with sources

stripe/

_stripe__sources.yml

_stripe__models.yml

stg_stripe__payments.sql

stg_stripe__customers.sql

shopify/

_shopify__sources.yml

_shopify__models.yml

stg_shopify__orders.sql

stg_shopify__products.sql

intermediate/

Business logic

finance/

_int_finance__models.yml

int_payments_pivoted.sql

marts/

Business entities

core/

_core__models.yml

dim_customers.sql

fct_orders.sql

finance/

_finance__models.yml

fct_revenue.sql

marketing/

_marketing__models.yml

dim_campaigns.sql

seeds/

country_codes.csv

tests/

assert_positive_revenue.sql

macros/

generate_schema_name.sql

cents_to_dollars.sql

snapshots/

customers_snapshot.sql

dbt_project.yml

packages.yml

dbt packages

.gitignore

README.md

Why This Structure?

The staging → intermediate → marts pattern creates clear data lineage. Staging models are 1:1 with sources (rename, cast, basic cleaning). Intermediate handles complex joins and business logic. Marts are the final dimensional models consumed by BI tools.

Key Directories

models/staging/-One subfolder per source system (stripe/, shopify/)
models/intermediate/-Complex transformations, not exposed to end users
models/marts/-Final dim_ and fct_ tables for BI consumption
_*__models.yml-Per-folder schema files for docs and tests

Getting Started

dbt init my_project && cd my_project
Create staging/{source}/ folder for each data source
Use stg_ prefix for staging, int_ for intermediate, dim_/fct_ for marts
dbt run --select staging to build layer by layer

Naming Conventions

stg_stripe__payments-Staging: stg_{source}__{table}
int_payments_pivoted-Intermediate: int_{description}
dim_customers-Dimension: dim_{entity}
fct_orders-Fact: fct_{event/transaction}

Mart Model

-- models/marts/core/fct_orders.sql
with orders as (
    select * from {{ ref('stg_shopify__orders') }}
),

payments as (
    select * from {{ ref('int_payments_pivoted') }}
)

select
    orders.order_id,
    orders.customer_id,
    orders.order_date,
    payments.total_amount
from orders
left join payments using (order_id)

When To Use This

Teams with 20-100+ models
Multiple data sources to integrate
Need clear ownership by domain (finance, marketing)
BI tools consuming final marts layer

Best Practices

Staging models should only SELECT from sources
Never skip layers—marts should ref staging or intermediate, not sources
Use __{source}__ double underscore naming convention
One _models.yml per folder for maintainability
Materialize staging as views, marts as tables
