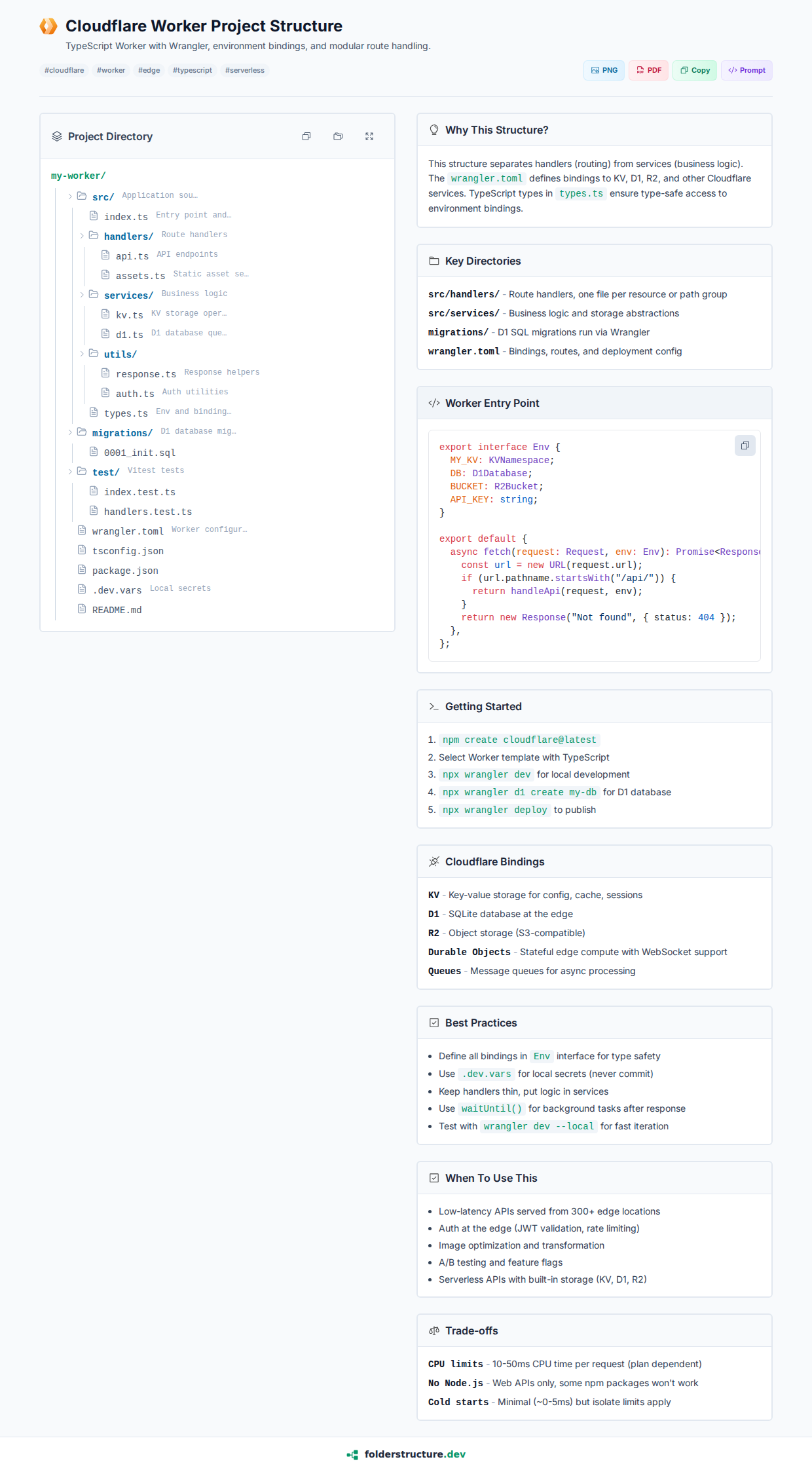

Cloudflare Worker Project Structure

TypeScript Worker with Wrangler, environment bindings, and modular route handling.

#cloudflare #worker #edge #typescript #serverless

PNG PDF

Project Directory

my-worker/

src/

Application source

index.ts

Entry point and router

handlers/

Route handlers

api.ts

API endpoints

assets.ts

Static asset serving

services/

Business logic

kv.ts

KV storage operations

d1.ts

D1 database queries

utils/

response.ts

Response helpers

auth.ts

Auth utilities

types.ts

Env and binding types

migrations/

D1 database migrations

0001_init.sql

test/

Vitest tests

index.test.ts

handlers.test.ts

wrangler.toml

Worker configuration

tsconfig.json

package.json

.dev.vars

Local secrets

README.md

Why This Structure?

This structure separates handlers (routing) from services (business logic). The wrangler.toml defines bindings to KV, D1, R2, and other Cloudflare services. TypeScript types in types.ts ensure type-safe access to environment bindings.

Key Directories

src/handlers/-Route handlers, one file per resource or path group
src/services/-Business logic and storage abstractions
migrations/-D1 SQL migrations run via Wrangler
wrangler.toml-Bindings, routes, and deployment config

Worker Entry Point

export interface Env {
  MY_KV: KVNamespace;
  DB: D1Database;
  BUCKET: R2Bucket;
  API_KEY: string;
}

export default {
  async fetch(request: Request, env: Env): Promise {
    const url = new URL(request.url);
    if (url.pathname.startsWith("/api/")) {
      return handleApi(request, env);
    }
    return new Response("Not found", { status: 404 });
  },
};

Getting Started

npm create cloudflare@latest
Select Worker template with TypeScript
npx wrangler dev for local development
npx wrangler d1 create my-db for D1 database
npx wrangler deploy to publish

Cloudflare Bindings

KV-Key-value storage for config, cache, sessions
D1-SQLite database at the edge
R2-Object storage (S3-compatible)
Durable Objects-Stateful edge compute with WebSocket support
Queues-Message queues for async processing

Best Practices

Define all bindings in Env interface for type safety
Use .dev.vars for local secrets (never commit)
Keep handlers thin, put logic in services
Use waitUntil() for background tasks after response
Test with wrangler dev --local for fast iteration

When To Use This

Low-latency APIs served from 300+ edge locations
Auth at the edge (JWT validation, rate limiting)
Image optimization and transformation
A/B testing and feature flags
Serverless APIs with built-in storage (KV, D1, R2)

Trade-offs

CPU limits-10-50ms CPU time per request (plan dependent)
No Node.js-Web APIs only, some npm packages won't work
Cold starts-Minimal (~0-5ms) but isolate limits apply
